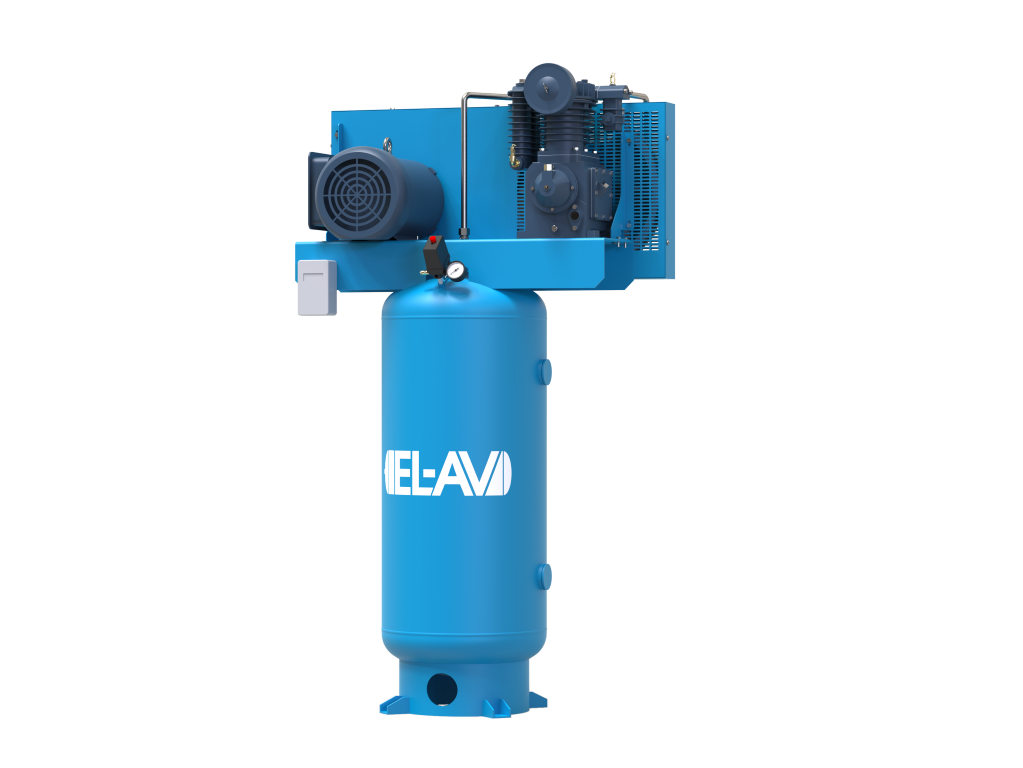

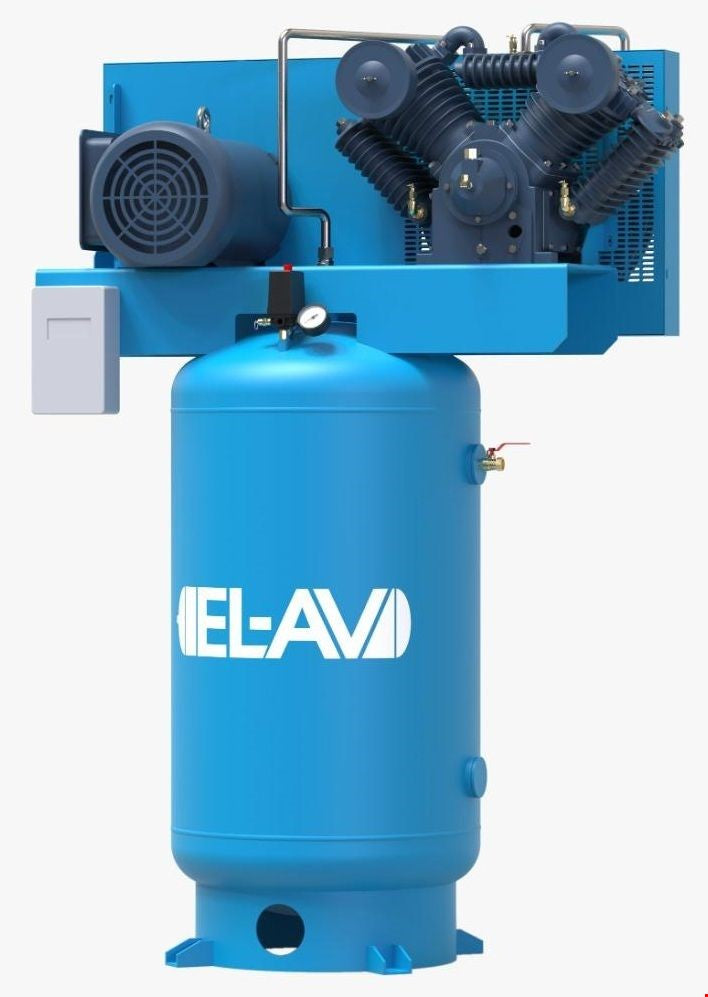

BL Series Two-Stage Piston Compressor
Heavy-Duty Industrial Performance | 7.5 HP | 80 Gallon
Manufactured by EL-AV Compressors and distributed officially in North America by EL-AIR, the BL Series represents the gold standard in heavy-duty reciprocating air compressors. Engineered for extreme reliability and built to last, these two-stage piston compressors feature an all-cast-iron pump and crankcase construction. From automotive workshops to demanding industrial sites, the BL Series is purpose-built to deliver continuous, high-pressure air while maintaining exceptionally low operating temperatures and minimal vibration.
100% Heavy-Duty Durability

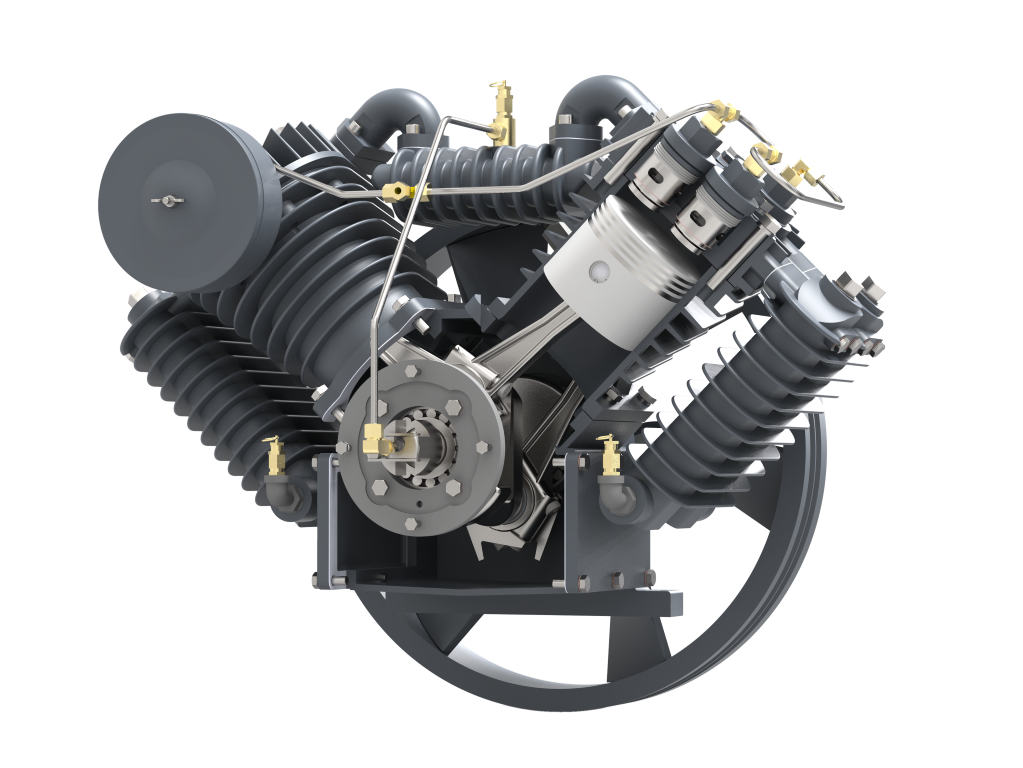

Features an all-cast-iron pump, oversized bearings, and precision-balanced crankshafts to severely reduce vibration and extend service life. Designed specifically for continuous duty cycles under the toughest factory conditions.
Maximum Efficiency
Optimized cylinder design and slow-running speeds deliver higher CFM per horsepower. An advanced cooling system with oversized aftercoolers ensures cooler operation, reducing overall power consumption.
Technical Specifications
| Free Air Delivery (CFM) |
26 CFM @ 175 PSI |
| Motor Power |
7.5 HP (Premium Efficiency) |
| Air Tank Capacity |
80 Gallon (ASME Certified) |
| Operating Voltage |
3 Phase (208/230V) |
| EL-AV Pump Model |
BL-30 (All-Cast-Iron) |
| Acoustic Level |
73 dB(A) |
| Air Outlet Port |
3/4" NPT |
🔧 Easy & Cost-Effective Maintenance
Individually cast cylinders and accessible valve pockets simplify routine service. Long-life stainless-steel valves and premium piston rings ensure quick, low-cost maintenance over the compressor's lifecycle.
* Disclaimer: Product images are for illustration purposes only. Actual product configuration (such as tank orientation and pump layout) may vary slightly based on horsepower and tank selection.
