ELCWS Cyclone Water Separator
Zero-Maintenance Moisture Extraction | 118 CFM
Immediately eliminate bulk water and liquid condensate from your pneumatic grid. Manufactured by EL-AV Compressors, the highly efficient ELCWS Centrifugal Separator utilizes a precisely engineered finned diaphragm that imparts a high-speed rotary motion to the incoming air. Liquid condensate adheres to the internal walls via centrifugal force and safely drops to the storage bowl, ensuring pristine air enters your downstream dryers and fine filters.
Engineering Advantages
-
Zero Maintenance: Completely mechanical separation. No filter elements or moving parts to ever replace or clog.
-
Variable Flow Tolerant: Retains high moisture separation efficiency even under severe air demand fluctuations.
-
Ultra-Low Resistance: Operates with a negligible nominal pressure drop of just 0.58 PSI, saving massive amounts of compressor energy.
Technical Specifications
| Flow Capacity |
118 CFM |
| Inlet/Outlet Port |
3/4" NPT/BSP |
| Drain Port |
G 3/4" BSP-F |
| Max Pressure |
232 PSI (16 Bar) |
| Dimensions |
3.7" (Dia) x 10.8" (H) |
💧 EL-AIR Deployment Note
A Cyclone Water Separator is the crucial first step in air treatment. It effortlessly removes bulk liquid and heavy condensation, but it does not remove oil aerosols or microscopic vapor. For complete instrument-grade purification, this unit should always be installed immediately upstream of EF Series Coalescing Filters and a Refrigerated Air Dryer.

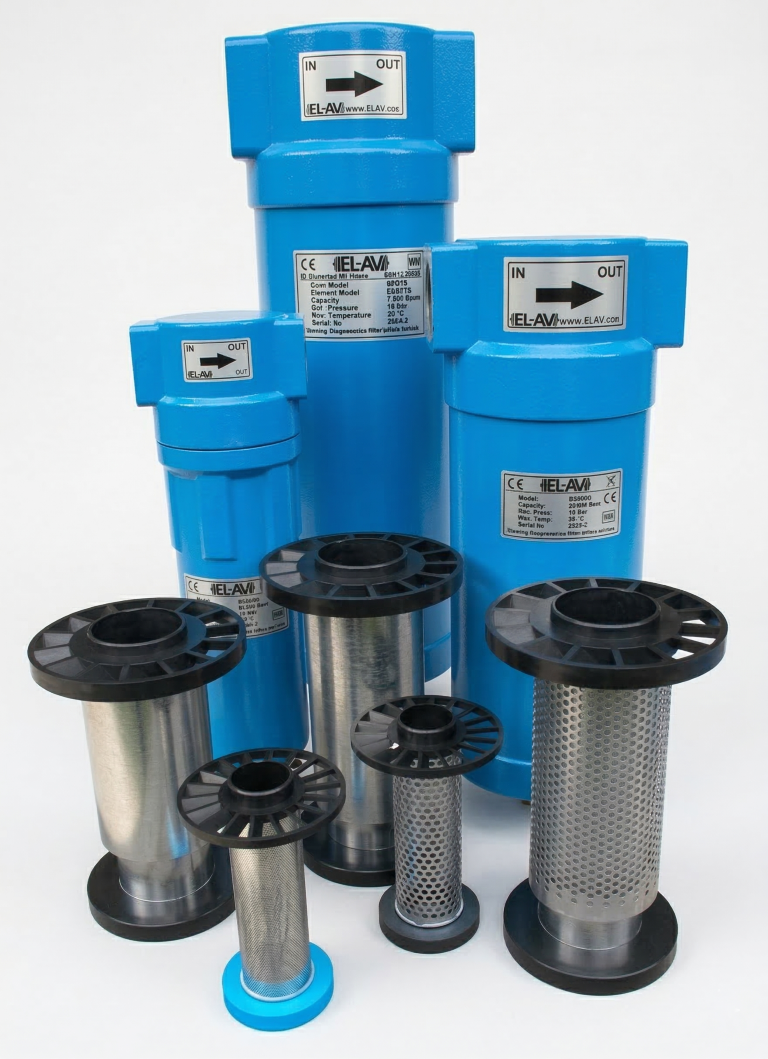

* Note: Product images are for illustration purposes only. Actual product may vary slightly in appearance.
