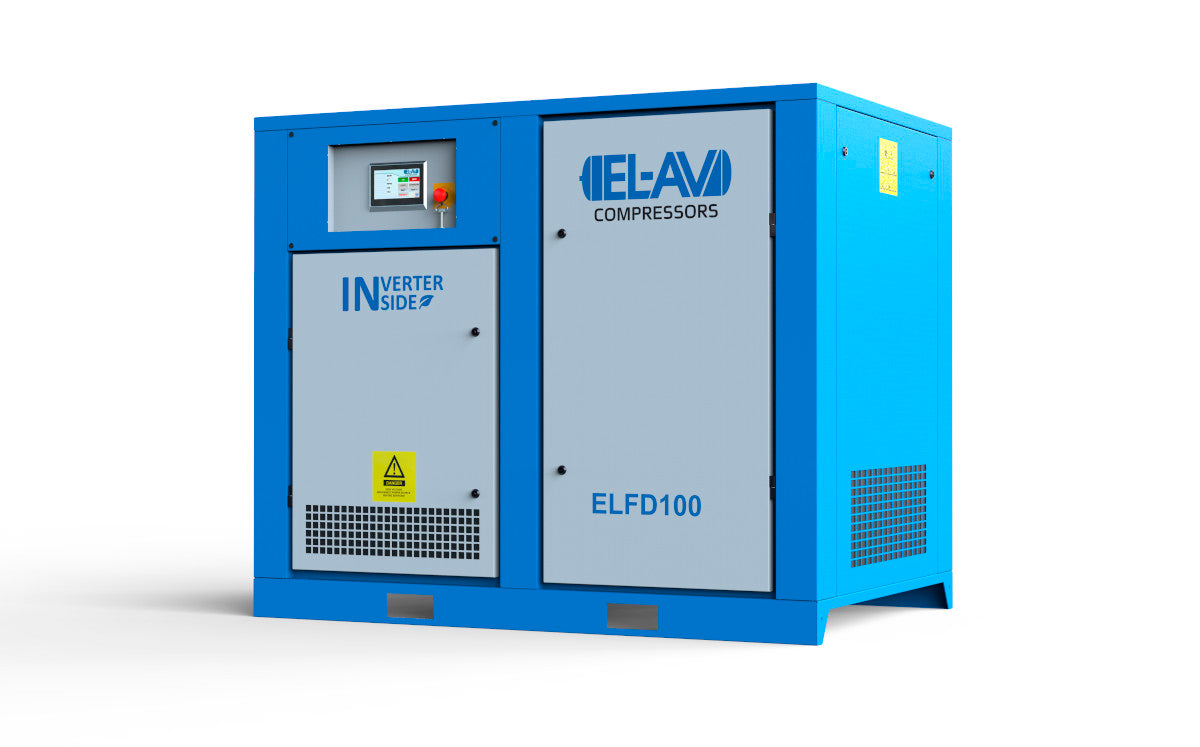

Manufactured by EL-AV Compressors and distributed officially in North America by EL-AIR. Engineered for maximum reliability and energy efficiency, the EL+ series PM VFD Rotary Screw Compressor delivers continuous, high-quality compressed air. Featuring an advanced intelligent control system and a permanent magnet motor, this compressor strictly matches air supply to your facility's demand, eliminating power waste and ensuring optimal performance in demanding industrial environments.
Key Features & Benefits
Energy Savings: Optimized permanent magnet (PM) motor and Variable Frequency Drive (VFD) significantly reduce power consumption by up to 35%.
Durability: Built with premium industrial-grade components designed for heavy-duty 24/7 continuous operation without performance degradation.
Intelligent Control: Advanced PLC controller monitors system parameters in real-time, ensuring safe, stable, and highly responsive operation.
Low Noise Acoustics: Heavy-duty sound-attenuated enclosure provides whisper-quiet operation suitable for noise-sensitive working environments.
Technical Specifications
Specification
Value
Motor Power
100 HP
Air Delivery at 116 PSI (8 Bar)
94 - 470 CFM
Dimensions (L x W x H)
72 x 47 x 60 inches
Weight
2976 lbs
Noise Level
72 dB(A)
Air Discharge Connection
G 2" BSP
Power Supply
460V 3PH 60HZ
Motor Type
iPM TEFC (IP54)
Freight & Logistics Notice
Due to the industrial scale of this equipment, standard shipping rates do not apply. This item requires specialized freight transport. For logistics arrangements, custom flow analysis, or compatibility inquiries, contact our engineering support team at info@el-air.com.
* Note: Product images are for illustration purposes only. Actual product may vary slightly in appearance.
